first commit

.gitignore

@@ -0,0 +1,6 @@
+config.h
+.pio
+.vscode/.browse.c_cpp.db*
+.vscode/c_cpp_properties.json
+.vscode/launch.json
+.vscode/ipch

.vscode/extensions.json

@@ -0,0 +1,10 @@
+{
+    // See http://go.microsoft.com/fwlink/?LinkId=827846
+    // for the documentation about the extensions.json format
+    "recommendations": [
+        "platformio.platformio-ide"
+    ],
+    "unwantedRecommendations": [
+        "ms-vscode.cpptools-extension-pack"
+    ]
+}

include/README

@@ -0,0 +1,39 @@
+
+This directory is intended for project header files.
+
+A header file is a file containing C declarations and macro definitions
+to be shared between several project source files. You request the use of a
+header file in your project source file (C, C++, etc) located in `src` folder
+by including it, with the C preprocessing directive `#include'.
+
+```src/main.c
+
+#include "header.h"
+
+int main (void)
+{
+ ...
+}
+```
+
+Including a header file produces the same results as copying the header file
+into each source file that needs it. Such copying would be time-consuming
+and error-prone. With a header file, the related declarations appear
+in only one place. If they need to be changed, they can be changed in one
+place, and programs that include the header file will automatically use the
+new version when next recompiled. The header file eliminates the labor of
+finding and changing all the copies as well as the risk that a failure to
+find one copy will result in inconsistencies within a program.
+
+In C, the usual convention is to give header files names that end with `.h'.
+It is most portable to use only letters, digits, dashes, and underscores in
+header file names, and at most one dot.
+
+Read more about using header files in official GCC documentation:
+
+* Include Syntax
+* Include Operation
+* Once-Only Headers
+* Computed Includes
+
+https://gcc.gnu.org/onlinedocs/cpp/Header-Files.html

lib/README

@@ -0,0 +1,46 @@
+
+This directory is intended for project specific (private) libraries.
+PlatformIO will compile them to static libraries and link into executable file.
+
+The source code of each library should be placed in an own separate directory
+("lib/your_library_name/[here are source files]").
+
+For example, see a structure of the following two libraries `Foo` and `Bar`:
+
+|--lib
+|  |
+|  |--Bar
+|  |  |--docs
+|  |  |--examples
+|  |  |--src
+|  |     |- Bar.c
+|  |     |- Bar.h
+|  |  |- library.json (optional, custom build options, etc) https://docs.platformio.org/page/librarymanager/config.html
+|  |
+|  |--Foo
+|  |  |- Foo.c
+|  |  |- Foo.h
+|  |
+|  |- README --> THIS FILE
+|
+|- platformio.ini
+|--src
+   |- main.c
+
+and a contents of `src/main.c`:
+```
+#include <Foo.h>
+#include <Bar.h>
+
+int main (void)
+{
+  ...
+}
+
+```
+
+PlatformIO Library Dependency Finder will find automatically dependent
+libraries scanning project source files.
+
+More information about PlatformIO Library Dependency Finder
+- https://docs.platformio.org/page/librarymanager/ldf.html

platformio.ini

@@ -0,0 +1,19 @@
+; PlatformIO Project Configuration File
+;
+;   Build options: build flags, source filter
+;   Upload options: custom upload port, speed and extra flags
+;   Library options: dependencies, extra library storages
+;   Advanced options: extra scripting
+;
+; Please visit documentation for the other options and examples
+; https://docs.platformio.org/page/projectconf.html
+

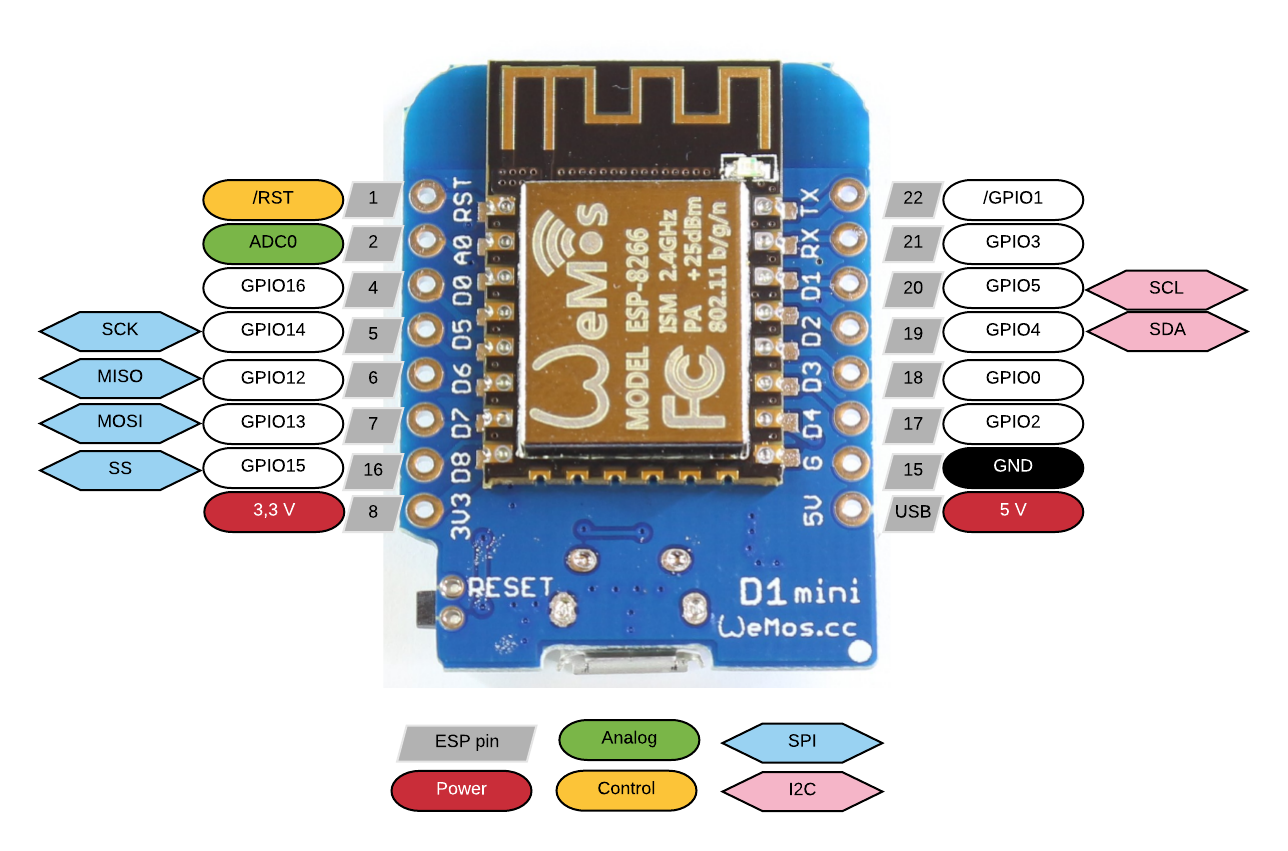

+[env:d1_mini_lite]
+platform = espressif8266
+board = d1_mini_lite
+framework = arduino
+; board_build.f_cpu = 160000000L  ; uncomment to set CPU frequency to 160 MHz
+lib_deps =
+	bblanchon/ArduinoJson@^7.2.0
+	adafruit/Adafruit SSD1306@^2.5.13
+	arduino-libraries/NTPClient@^3.2.1

src/SmartCube/cubeBattery.h

@@ -0,0 +1,18 @@
+#define ADC_PIN 10  // GPIO10 on WEMOS S2 Mini
+
+const float R1 = 100000.0; // 100k ohms
+const float R2 = 47000.0;  // 47k ohms
+const float ADC_MAX = 4095.0; // 12-bit ADC resolution
+const float V_REF = 3.3;    // Reference voltage for ESP32-S2 ADC
+
+float readBatteryVoltage() {
+  int rawADC = analogRead(ADC_PIN);
+  float voltage = (rawADC / ADC_MAX) * V_REF;
+  return voltage * (R1 + R2) / R2; // Scale to actual battery voltage
+}
+
+int batteryPercentage(float voltage) {
+  if (voltage >= 4.2) return 100;
+  if (voltage <= 3.0) return 0;
+  return (voltage - 3.0) * 100 / (4.2 - 3.0); // Linear mapping
+}

src/SmartCube/cubeButtons.h

@@ -0,0 +1,105 @@
+extern Adafruit_SSD1306 display;    // Reference to the OLED display object
+bool is_display_off = false;        // State variable to track display on/off status
+
+int buttonDebounceDelay = 50;       // Debounce delay in milliseconds
+int buttonLongPressDelay = 2000;    // Long press threshold in milliseconds
+
+void cubeButtonHandler() {
+    unsigned long currentMillis = millis(); // Get the current time in milliseconds
+
+    // Track the start times of button presses
+    static unsigned long leftPressStart = 0;
+    static unsigned long middlePressStart = 0;
+    static unsigned long rightPressStart = 0;
+
+    // Track if a beep has already been played for each button to avoid repeated beeping
+    static bool leftBeeped = false;
+    static bool middleBeeped = false;
+    static bool rightBeeped = false;
+
+    // Check if each button is currently pressed
+    bool leftPressed = (digitalRead(PIN_BTN_L) == HIGH);
+    bool middlePressed = (digitalRead(PIN_BTN_M) == HIGH);
+    bool rightPressed = (digitalRead(PIN_BTN_R) == HIGH);
+
+    // Short press detection for left button
+    if (leftPressed) {
+        // Check if the button is held beyond the debounce delay
+        if ((currentMillis - leftPressStart > buttonDebounceDelay)) {
+            if (!leftBeeped) {
+                beep(1000);  // Play beep for a short press
+                leftBeeped = true; // Mark as beeped to avoid repeat beeps
+                // Handle left short press action here
+            }
+        }
+    } else {
+        leftPressStart = currentMillis;  // Reset timer when button is released
+        leftBeeped = false;              // Reset beep flag for next press
+    }
+
+    // Short press detection for middle button
+    if (middlePressed) {
+        if ((currentMillis - middlePressStart > buttonDebounceDelay)) {
+            if (!middleBeeped) {
+                beep(1000);  // Play beep for a short press
+                middleBeeped = true; // Mark as beeped to avoid repeat beeps
+                // Handle middle short press action here
+            }
+        }
+    } else {
+        middlePressStart = currentMillis;  // Reset timer when button is released
+        middleBeeped = false;              // Reset beep flag for next press
+    }
+
+    // Short press detection for right button
+    if (rightPressed) {
+        if ((currentMillis - rightPressStart > buttonDebounceDelay)) {
+            if (!rightBeeped) {
+                beep(1000);  // Play beep for a short press
+                rightBeeped = true; // Mark as beeped to avoid repeat beeps
+                if (is_display_off) {
+                    display.ssd1306_command(SSD1306_DISPLAYON); // Turn on the display
+                    is_display_off = false;    // Update display state
+                    beep(1300);  // Additional beep to confirm display is on
+                }
+            }
+        }
+    } else {
+        rightPressStart = currentMillis;  // Reset timer when button is released
+        rightBeeped = false;              // Reset beep flag for next press
+    }
+
+    // Long press detection for left button
+    if (leftPressed && (currentMillis - leftPressStart > buttonLongPressDelay)) {
+        if (!leftBeeped) {
+            beep(1000);  // Play beep for a long press
+            leftBeeped = true; // Mark as beeped to avoid repeat beeps
+            // Handle left long press action here
+        }
+    }
+
+    // Long press detection for middle button
+    if (middlePressed && (currentMillis - middlePressStart > buttonLongPressDelay)) {
+        if (!middleBeeped) {
+            beep(1000);  // Play beep for a long press
+            middleBeeped = true; // Mark as beeped to avoid repeat beeps
+            // Handle middle long press action here
+        }
+    }
+
+    // Long press detection for right button (with display control)
+    if (rightPressed && (currentMillis - rightPressStart > buttonLongPressDelay)) {
+        if (!is_display_off) { // Turn off the display if it's on
+            beep(1300); // Beep to indicate display turn-off
+            display.ssd1306_command(SSD1306_DISPLAYOFF); // Turn off the display
+            is_display_off = true;     // Update display state
+            beep(1000);  // Additional beep to confirm display is off
+        }
+    }
+
+    // Combined long press detection for left and middle buttons to restart device
+    if (leftPressed && middlePressed &&
+        (currentMillis - leftPressStart > buttonLongPressDelay) && (currentMillis - middlePressStart > buttonLongPressDelay)) {
+            ESP.restart();  // Restart device if both buttons are held long enough
+    }
+}

src/SmartCube/cubeSound.h

@@ -0,0 +1,5 @@
+void beep(int buzz) {
+    tone(PIN_BUZZER, buzz, 100); // Generate a tone on the buzzer at the specified frequency for 100 ms
+    delay(100);                  // Wait for the tone to finish playing
+    noTone(PIN_BUZZER);          // Stop the tone on the buzzer
+}

src/SmartCube/cubeWifiManager.h

@@ -0,0 +1,336 @@
+#include <ESP8266WiFi.h>
+#include <WiFiClient.h>
+#include <ESP8266WebServer.h>
+#include <LittleFS.h>
+#include <DNSServer.h>
+#include <map>
+
+// Constants for the HTML pages and config file
+static const String beginHtml = "<!DOCTYPE html><html lang='en'><head><meta charset='UTF-8'><meta name='viewport' content='width=device-width, initial-scale=1.0'><title>SmartCube Configure</title><style>body{font-family:Arial,sans-serif;background-color:#f4f4f9;color:#333;display:flex;align-items:center;justify-content:center;height:100vh;margin:0}.container{width:100%;max-width:300px;padding:20px;background:#fff;border-radius:10px;box-shadow:0 4px 8px rgba(0,0,0,0.2);box-sizing:border-box}h2{margin-top:0;text-align:center;color:#0073e6}label{display:block;margin-bottom:5px;font-weight:bold}input[type='text'],input[type='password']{width:100%;padding:8px;margin-bottom:15px;border:1px solid #ccc;border-radius:4px;box-sizing:border-box}button{width:100%;padding:10px;background-color:#0073e6;color:white;border:none;border-radius:4px;cursor:pointer;font-size:16px}button:hover{background-color:#005bb5}table{width:100%;margin-top:20px}td{padding:5px;text-align:left}</style></head><body><div class='container'><h2>Configure AP</h2><table><tbody><tr><td><label for='ssid'>SSID</label></td><td><input id='ssid' type='text' placeholder='Enter SSID'/></td></tr><tr><td><label for='pass'>Password</label></td><td><input id='pass' type='password' placeholder='Enter Password'/></td></tr><tr><td colspan='2'><button onclick=\"location.href = '/add?ssid=' + encodeURIComponent(document.getElementById('ssid').value) + '&pass=' + encodeURIComponent(document.getElementById('pass').value);\">Add Network</button></td></tr></tbody></table><br/><table><tbody>";
+static const String endHtml = "</tbody></table></body></html>";
+static const String configFile = "/cubeWifiManager";
+
+// Timeout for WiFi connection attempts
+static const unsigned long connectionTimeout = 15000; // 15 seconds
+class cubeWifiManager {
+public:
+    // Constructors
+    cubeWifiManager(Adafruit_SSD1306& display);
+    cubeWifiManager(String ssid, String pass, bool hidden, Adafruit_SSD1306& display);
+
+    // Public methods
+    bool start();
+    void reset();
+    void addSsid(String ssid, String password);
+    void removeSsid(String ssid, String password);
+
+private:
+    // Private members
+    Adafruit_SSD1306& display;
+    std::unique_ptr<ESP8266WebServer> server;
+    std::map<String, String> _ssids;
+    String _ssid, _pass;
+    bool _hidden;
+
+    // Private methods
+    void init(String ssid, String pass, bool hidden);
+    bool tryConnectToSsid(const char* ssid, const char* pass);
+    bool tryConnect();
+    void createAP();
+    bool redirectToIp();
+    void readConfig();
+    void writeConfig();
+    void handleRoot();
+    void handleAdd();
+    void handleRemove();
+    void handleSelect();
+};
+
+// Initialization
+void cubeWifiManager::init(String ssid, String pass, bool hidden) {
+    // Ensure password meets minimum length
+    if (pass != "" && pass.length() < 8) {
+            display.clearDisplay();
+            display.setCursor(0, 0);
+            display.println("Password too short");
+            display.display();
+            pass = "8characters";
+    }
+
+    // Get the last 4 characters of the MAC address
+    String macAddress = WiFi.macAddress();
+    String macSuffix = macAddress.substring(macAddress.length() - 5);
+    macSuffix.replace(":", "");
+
+    // Set default SSID if none provided
+    _ssid = ssid.isEmpty() ? "SmartCube_" + macSuffix : ssid;
+    _pass = pass;
+    _hidden = hidden;
+
+
+    // Initialize LittleFS with error handling
+    if (!LittleFS.begin()) {
+        display.clearDisplay();
+        display.setCursor(0, 0);
+        display.println("FS init failed");
+        display.display();
+    }
+}
+
+// Constructors
+cubeWifiManager::cubeWifiManager(Adafruit_SSD1306& display) : display(display) {
+    init("", "", false);
+}
+
+cubeWifiManager::cubeWifiManager(String ssid, String pass, bool hidden, Adafruit_SSD1306& display) : display(display) {
+    init(ssid, pass, hidden);
+}
+
+// Attempt to start and connect or create AP
+bool cubeWifiManager::start() {
+    if (_pass == "8characters") {
+        display.clearDisplay();
+        display.setCursor(0, 0);
+        display.println("Using default pass:");
+        display.println("8characters");
+        display.display();
+    }
+    return tryConnect() || (createAP(), false);
+}
+
+// Attempt connection to each saved SSID in order
+bool cubeWifiManager::tryConnect() {
+    readConfig();
+    for (auto const& item : _ssids) {
+        if (tryConnectToSsid(item.first.c_str(), item.second.c_str())) {
+            return true;
+        }
+    }
+    return false;
+}
+
+// Attempt to connect to a specific SSID with timeout, dot animation, and IP display
+bool cubeWifiManager::tryConnectToSsid(const char* ssid, const char* pass) {
+    WiFi.begin(ssid, pass);
+    unsigned long start = millis();
+
+    // Clear display and set initial message
+    display.clearDisplay();
+    display.setCursor(0, 0);
+    display.println("Connecting to WiFi:");
+    display.setCursor(0, 11);
+    display.println(String(ssid));
+    display.display();
+
+    int dotCount = 0;
+    while (millis() - start < connectionTimeout) {
+        delay(500);
+
+        // Check WiFi connection status
+        if (WiFi.status() == WL_CONNECTED) {
+            // Success message with IP address
+            display.clearDisplay();
+            display.setCursor(0, 0);
+            display.println("Connected!");
+            display.setCursor(0, 12);
+            display.print("IP: ");
+            display.println(WiFi.localIP());
+            display.display();
+            delay(500);
+            return true;
+        }
+
+        // Animate by adding dots
+        display.setCursor(0, 20);
+        for (int i = 0; i < dotCount; i++) {
+            display.print(".");
+        }
+        display.display();
+        dotCount = (dotCount + 1);
+    }
+
+    // Connection failed
+    display.clearDisplay();
+    display.setCursor(0, 0);
+    display.println("Connection failed.");
+    display.display();
+    WiFi.disconnect();
+    return false;
+}
+
+// Setup Access Point with DNS and HTTP server
+void cubeWifiManager::createAP() {
+    WiFi.softAPdisconnect(true);
+    WiFi.mode(WIFI_AP);
+    WiFi.softAP(_ssid.c_str(), _pass.c_str(), 1, _hidden);
+
+    display.clearDisplay();
+    display.setCursor(0, 0);
+    display.println("AccessPoint created");
+    display.setCursor(0, 14);
+    display.println("SSID:");
+    display.setCursor(0, 24);
+    display.setTextSize(1);
+    display.println(_ssid.c_str());
+    display.setTextSize(1);
+    display.setCursor(0, 40);
+    display.println("Config portal:");
+    display.setCursor(0, 50);
+    display.print("http://");
+    display.println(WiFi.softAPIP().toString());
+    display.display();
+
+    server.reset(new ESP8266WebServer(80));
+    DNSServer dnsServer;
+    dnsServer.start(53, "*", WiFi.softAPIP());
+
+    server->on("/", std::bind(&cubeWifiManager::handleRoot, this));
+    server->on("/add", std::bind(&cubeWifiManager::handleAdd, this));
+    server->on("/remove", std::bind(&cubeWifiManager::handleRemove, this));
+    server->on("/select", std::bind(&cubeWifiManager::handleSelect, this));
+
+    server->begin();
+
+    while (true) {
+        dnsServer.processNextRequest();
+        server->handleClient();
+        delay(10);
+    }
+}
+
+// Redirect to AP IP if not accessed directly
+bool cubeWifiManager::redirectToIp() {
+    if (server->hostHeader() == WiFi.softAPIP().toString()) {
+        return false;
+    }
+    server->sendHeader("Location", "http://" + WiFi.softAPIP().toString(), true);
+    server->send(302, "text/plain", "");
+    server->client().stop();
+    return true;
+}
+
+// Modify the addSsid function to take parameters from the `select` page
+void cubeWifiManager::addSsid(String ssid, String password) {
+    _ssids[ssid] = password;
+    writeConfig();
+
+    // Attempt to connect to the selected network
+    if (tryConnectToSsid(ssid.c_str(), password.c_str())) {
+        // Redirect to the main page on success
+        server->sendHeader("Location", "/", true);
+        server->send(302, "text/plain", "");
+    } else {
+        // Show error message if connection failed
+        server->send(200, "text/html", "<html><body><h2>Connection failed. Please try again.</h2></body></html>");
+    }
+}
+
+// Remove SSID from config
+void cubeWifiManager::removeSsid(String ssid, String password) {
+    if (_ssids.count(ssid) && _ssids[ssid] == password) {
+        _ssids.erase(ssid);
+        writeConfig();
+    }
+}
+
+// Handle file-based config loading
+void cubeWifiManager::readConfig() {
+    _ssids.clear();
+    File file = LittleFS.open(configFile, "r");
+    if (!file) {
+        display.clearDisplay();
+        display.setCursor(0, 0);
+        display.println("Config not found");
+        display.display();
+        return;
+    }
+
+    while (file.available()) {
+        String ssid = file.readStringUntil('\n');
+        ssid.trim();
+        String pass = file.readStringUntil('\n');
+        pass.trim();
+        _ssids[ssid] = pass;
+    }
+    file.close();
+}
+
+// Handle file-based config saving
+void cubeWifiManager::writeConfig() {
+    File file = LittleFS.open(configFile, "w");
+    for (const auto& item : _ssids) {
+        file.println(item.first);
+        file.println(item.second);
+    }
+    file.close();
+}
+
+// Reset configuration
+void cubeWifiManager::reset() {
+    LittleFS.remove(configFile);
+    _ssids.clear();
+}
+
+String urlEncode(const String &str) {
+    String encoded = "";
+    char c;
+    for (size_t i = 0; i < str.length(); i++) {
+        c = str.charAt(i);
+        if (isalnum(c)) {
+            encoded += c;
+        } else {
+            encoded += '%';
+            char buf[3];
+            snprintf(buf, sizeof(buf), "%02X", c);
+            encoded += buf;
+        }
+    }
+    return encoded;
+}
+
+void cubeWifiManager::handleRoot() {
+    if (redirectToIp()) return;
+
+    // Scan for available networks
+    int n = WiFi.scanNetworks();
+    String result = beginHtml;
+
+    // Add stored SSIDs to the page
+    result += "<h3>Saved Networks</h3>";
+    for (const auto& item : _ssids) {
+        result += "<tr><td><button onclick=\"location.href='/remove?ssid=' + escape('" + item.first + "') + '&pass=' + escape('" + item.second + "') \">&times;</button></td><td>" + item.first + "</td><td>-</td><td>" + item.second + "</td></tr>";
+    }
+
+    // Display available WiFi networks
+    result += "</tbody></table><h3>Available Networks</h3><table><tbody>";
+    for (int i = 0; i < n; i++) {
+        // Get SSID and signal strength
+        String ssid = WiFi.SSID(i);
+        int rssi = WiFi.RSSI(i);
+        bool openNetwork = (WiFi.encryptionType(i) == ENC_TYPE_NONE);
+
+        // Show network with button to select
+        result += "<tr><td><button onclick=\"location.href='/select?ssid=" + urlEncode(ssid) + "'\">" + ssid + "</button></td><td>" + (openNetwork ? "(Open)" : "(Secured)") + "</td><td>" + String(rssi) + " dBm</td></tr>";
+    }
+    result += endHtml;
+    server->send(200, "text/html", result);
+}
+
+void cubeWifiManager::handleAdd() {
+    server->send(200, "text/html", "The ESP will now reboot.");
+    addSsid(server->arg("ssid"), server->arg("pass"));
+    delay(500);
+    ESP.restart();
+}
+
+void cubeWifiManager::handleRemove() {
+    removeSsid(server->arg("ssid"), server->arg("pass"));
+    handleRoot();
+}
+
+// Add SSID to config and save
+void cubeWifiManager::handleSelect() {
+    String ssid = server->arg("ssid");
+    String selectPage = "<!DOCTYPE html><html lang='en'><head><meta charset='UTF-8'><meta name='viewport' content='width=device-width, initial-scale=1.0'><title>Connect to " + ssid + "</title><style>body{font-family:Arial,sans-serif;background-color:#f4f4f9;color:#333;display:flex;align-items:center;justify-content:center;height:100vh;margin:0}.container{width:100%;max-width:300px;padding:20px;background:#fff;border-radius:10px;box-shadow:0 4px 8px rgba(0,0,0,0.2);box-sizing:border-box}h2{margin-top:0;text-align:center;color:#0073e6}label{display:block;margin-bottom:5px;font-weight:bold}input[type='password']{width:100%;padding:8px;margin-bottom:15px;border:1px solid #ccc;border-radius:4px;box-sizing:border-box}button{width:100%;padding:10px;background-color:#0073e6;color:white;border:none;border-radius:4px;cursor:pointer;font-size:16px}button:hover{background-color:#005bb5}</style></head><body><div class='container'><h2>Connect to " + ssid + "</h2><form action='/add' method='get'><input type='hidden' name='ssid' value='" + ssid + "'><label for='pass'>Password:</label><input id='pass' type='password' name='pass' placeholder='Enter Password'><button type='submit'>Connect</button></form></div></body></html>";
+    server->send(200, "text/html", selectPage);
+}

src/example_config.h

@@ -0,0 +1,15 @@
+// Zabbix API details
+const char* zabbixServer = "http://your.zabbix.com/api_jsonrpc.php";
+const char* zabbixToken = "Pu770k3nH3r3";
+
+// OLED display settings
+#define SCREEN_WIDTH 128
+#define SCREEN_HEIGHT 64
+#define OLED_RESET -1
+#define FRAMERATE 8
+
+// Buttons and buzzer
+#define PIN_BTN_L 12 // D6
+#define PIN_BTN_M 13 // D7
+#define PIN_BTN_R 15 // D8
+#define PIN_BUZZER 0 // D3

src/main.cpp

@@ -0,0 +1,189 @@
+#include <Arduino.h>
+#include <Adafruit_SSD1306.h>
+#include <ESP8266HTTPClient.h>
+#include <ArduinoJson.h>
+#include "example_config.h"
+#include "SmartCube/cubeSound.h"
+#include "SmartCube/cubeButtons.h"
+#include "SmartCube/cubeWifiManager.h"
+
+Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
+cubeWifiManager cubeWifiManager(display);
+
+unsigned long lastRefresh = 0;
+const unsigned long refreshInterval = 60000; // 60 seconds
+unsigned long lastDisplayUpdate = 0;
+const unsigned long displayInterval = 100; // 100 ms
+
+String lastEventId = "";
+String problems[10];
+int problemCount = 0;
+int severityCounts[5] = {0};
+bool newProblemsDetected = false;
+
+void initSystems() {
+  pinMode(PIN_BTN_L, INPUT);
+  pinMode(PIN_BTN_M, INPUT);
+  pinMode(PIN_BTN_R, INPUT);
+  pinMode(PIN_BUZZER, OUTPUT);
+  pinMode(LED_BUILTIN, OUTPUT);
+  digitalWrite(LED_BUILTIN, HIGH);
+  Wire.begin();             // Initialize I2C
+  Wire.setClock(400000L);    // Set I2C to Fast Mode (400 kHz)
+  display.ssd1306_command(SSD1306_SETCONTRAST);
+  display.ssd1306_command(200);  // Value between 0 and 255
+  // Initialize the SSD1306 display
+  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Adjust I2C address if needed
+    for(;;); // Don't proceed, loop forever
+  }
+
+  // Rotate the display 180 degrees
+  display.setRotation(2);
+
+  // Clear the display buffer
+  display.clearDisplay();
+  display.setTextSize(1);
+  display.setTextColor(WHITE);
+  display.setCursor(0, 0);
+  display.display();
+}
+
+void fetchActiveProblems() {
+  WiFiClient client;
+  HTTPClient http;
+  http.begin(client, zabbixServer);
+  http.addHeader("Content-Type", "application/json");
+
+  // JSON payload
+  DynamicJsonDocument doc(512);
+  doc["jsonrpc"] = "2.0";
+  doc["method"] = "problem.get";
+  doc["id"] = 1;
+  doc["auth"] = zabbixToken;
+  JsonObject params = doc["params"].to<JsonObject>();
+  params["output"] = "extend";
+  params["recent"] = true;
+  params["sortfield"] = "eventid";
+  params["sortorder"] = "DESC";
+
+  String requestBody;
+  serializeJson(doc, requestBody);
+
+  // POST request
+  int httpResponseCode = http.POST(requestBody);
+
+  if (httpResponseCode > 0) {
+    String response = http.getString();
+
+    // Parse response
+    DynamicJsonDocument responseDoc(4096);
+    deserializeJson(responseDoc, response);
+
+    JsonArray result = responseDoc["result"].as<JsonArray>();
+    int newProblemCount = 0;
+    memset(severityCounts, 0, sizeof(severityCounts)); // Reset severities
+
+    for (JsonObject problem : result) {
+      String eventId = problem["eventid"].as<String>();
+      int severity = problem["severity"].as<int>();
+      String description = problem["name"].as<String>();
+
+      // Check for new problems by comparing event IDs as integers
+      if (eventId.toInt() > lastEventId.toInt()) {
+        newProblemsDetected = true;
+      }
+
+      // Add new problem descriptions to the array
+      if (newProblemCount < 10) {
+        problems[newProblemCount] = description;
+      }
+
+      // Count severities
+      if (severity >= 0 && severity < 5) {
+        severityCounts[severity]++;
+      }
+
+      newProblemCount++;
+    }
+
+    problemCount = newProblemCount;
+
+    // Update lastEventId after processing the most recent event
+    if (problemCount > 0) {
+      lastEventId = result[0]["eventid"].as<String>();
+    }
+  } else {
+    beep(2000);
+  }
+
+  http.end();
+}
+
+void displayProblems() {
+  static int scrollPos = SCREEN_WIDTH;
+  static unsigned long lastScrollTime = 0;
+
+  if (millis() - lastDisplayUpdate < displayInterval) {
+    return; // Skip rendering if the display interval hasn't elapsed
+  }
+  lastDisplayUpdate = millis();
+
+  display.clearDisplay();
+
+  // Header
+  display.setTextSize(1);
+  display.setCursor(0, 0);
+  display.print("Problems: ");
+  display.print(problemCount);
+
+  // Display severity counts (S0 to S4)
+  for (int i = 0; i < 5; i++) {
+    display.setCursor(0, 10 + (i * 10));
+    display.printf("S%d: %d", i, severityCounts[i]);
+  }
+
+  // Scrolling description of the first problem
+  if (problemCount > 0) {
+    String problemText = problems[0];
+    int16_t x1, y1;
+    uint16_t textWidth, textHeight;
+    display.getTextBounds(problemText, 0, 55, &x1, &y1, &textWidth, &textHeight);
+
+    if (millis() - lastScrollTime > 100) {
+      scrollPos -= 2;
+      if (scrollPos < -textWidth) {
+        scrollPos = SCREEN_WIDTH;
+      }
+      lastScrollTime = millis();
+    }
+
+    display.setTextSize(1);
+    display.setCursor(scrollPos, 55);
+    display.print(problemText);
+  }
+
+  display.display();
+}
+
+void setup() {
+  initSystems();
+  cubeWifiManager.start();
+  fetchActiveProblems();
+}
+
+void loop() {
+  unsigned long currentMillis = millis();
+  cubeButtonHandler();
+
+  if (currentMillis - lastRefresh >= refreshInterval) {
+    lastRefresh = currentMillis;
+    fetchActiveProblems();
+  }
+
+  displayProblems();
+
+  if (newProblemsDetected) {
+    beep(1000);
+    newProblemsDetected = false;
+  }
+}

src/netman.h

@@ -0,0 +1,333 @@
+#include <ESP8266WiFi.h>
+#include <WiFiClient.h>
+#include <ESP8266WebServer.h>
+#include <Adafruit_SSD1306.h>
+#include <LittleFS.h>
+#include <DNSServer.h>
+#include <map>
+
+// Constants for the HTML pages and config file
+static const String beginHtml = "<!DOCTYPE html><html lang='en'><head><meta charset='UTF-8'><meta name='viewport' content='width=device-width, initial-scale=1.0'><title>SmartCube Configure</title><style>body{font-family:Arial,sans-serif;background-color:#f4f4f9;color:#333;display:flex;align-items:center;justify-content:center;height:100vh;margin:0}.container{width:100%;max-width:300px;padding:20px;background:#fff;border-radius:10px;box-shadow:0 4px 8px rgba(0,0,0,0.2);box-sizing:border-box}h2{margin-top:0;text-align:center;color:#0073e6}label{display:block;margin-bottom:5px;font-weight:bold}input[type='text'],input[type='password']{width:100%;padding:8px;margin-bottom:15px;border:1px solid #ccc;border-radius:4px;box-sizing:border-box}button{width:100%;padding:10px;background-color:#0073e6;color:white;border:none;border-radius:4px;cursor:pointer;font-size:16px}button:hover{background-color:#005bb5}table{width:100%;margin-top:20px}td{padding:5px;text-align:left}</style></head><body><div class='container'><h2>Configure AP</h2><table><tbody><tr><td><label for='ssid'>SSID</label></td><td><input id='ssid' type='text' placeholder='Enter SSID'/></td></tr><tr><td><label for='pass'>Password</label></td><td><input id='pass' type='password' placeholder='Enter Password'/></td></tr><tr><td colspan='2'><button onclick=\"location.href = '/add?ssid=' + encodeURIComponent(document.getElementById('ssid').value) + '&pass=' + encodeURIComponent(document.getElementById('pass').value);\">Add Network</button></td></tr></tbody></table><br/><table><tbody>";
+static const String endHtml = "</tbody></table></body></html>";
+static const String configFile = "/netman";
+
+// Timeout for WiFi connection attempts
+static const unsigned long connectionTimeout = 15000; // 15 seconds
+
+struct netman {
+public:
+    netman(Adafruit_SSD1306& display);
+    netman(String ssid, String pass, bool hidden, Adafruit_SSD1306& display);
+    bool start();
+    void reset();
+    void addSsid(String ssid, String password);
+    void removeSsid(String ssid, String password);
+
+private:
+    Adafruit_SSD1306& display;
+    std::unique_ptr<ESP8266WebServer> server;
+    std::map<String, String> _ssids;
+    String _ssid, _pass;
+    bool _hidden;
+
+    void init(String ssid, String pass, bool hidden);
+    bool tryConnectToSsid(const char* ssid, const char* pass);
+    bool tryConnect();
+    void createAP();
+    bool redirectToIp();
+    void readConfig();
+    void writeConfig();
+    void handleRoot();
+    void handleAdd();
+    void handleRemove();
+    void handleSelect();
+};
+
+// Initialization
+void netman::init(String ssid, String pass, bool hidden) {
+    // Ensure password meets minimum length
+    if (pass != "" && pass.length() < 8) {
+            display.clearDisplay();
+            display.setCursor(0, 0);
+            display.println("Password too short");
+            display.display();
+            pass = "8characters";
+    }
+
+    // Get the last 4 characters of the MAC address
+    String macAddress = WiFi.macAddress();
+    String macSuffix = macAddress.substring(macAddress.length() - 5);
+    macSuffix.replace(":", "");
+
+    // Set default SSID if none provided
+    _ssid = ssid.isEmpty() ? "SmartCube_" + macSuffix : ssid;
+    _pass = pass;
+    _hidden = hidden;
+
+
+    // Initialize LittleFS with error handling
+    if (!LittleFS.begin()) {
+        display.clearDisplay();
+        display.setCursor(0, 0);
+        display.println("FS init failed");
+        display.display();
+    }
+}
+
+// Constructors
+netman::netman(Adafruit_SSD1306& display) : display(display) {
+    init("", "", false);
+}
+
+netman::netman(String ssid, String pass, bool hidden, Adafruit_SSD1306& display) : display(display) {
+    init(ssid, pass, hidden);
+}
+
+// Attempt to start and connect or create AP
+bool netman::start() {
+    if (_pass == "8characters") {
+        display.clearDisplay();
+        display.setCursor(0, 0);
+        display.println("Using default pass:");
+        display.println("8characters");
+        display.display();
+    }
+    return tryConnect() || (createAP(), false);
+}
+
+// Attempt connection to each saved SSID in order
+bool netman::tryConnect() {
+    readConfig();
+    for (auto const& item : _ssids) {
+        if (tryConnectToSsid(item.first.c_str(), item.second.c_str())) {
+            return true;
+        }
+    }
+    return false;
+}
+
+// Attempt to connect to a specific SSID with timeout, dot animation, and IP display
+bool netman::tryConnectToSsid(const char* ssid, const char* pass) {
+    WiFi.begin(ssid, pass);
+    unsigned long start = millis();
+
+    // Clear display and set initial message
+    display.clearDisplay();
+    display.setCursor(0, 0);
+    display.println("Connecting to WiFi:");
+    display.setCursor(0, 11);
+    display.println(String(ssid));
+    display.display();
+
+    int dotCount = 0;
+    while (millis() - start < connectionTimeout) {
+        delay(500);
+
+        // Check WiFi connection status
+        if (WiFi.status() == WL_CONNECTED) {
+            // Success message with IP address
+            display.clearDisplay();
+            display.setCursor(0, 0);
+            display.println("Connected!");
+            display.setCursor(0, 12);
+            display.print("IP: ");
+            display.println(WiFi.localIP());
+            display.display();
+            delay(500);
+            return true;
+        }
+
+        // Animate by adding dots
+        display.setCursor(0, 20);
+        for (int i = 0; i < dotCount; i++) {
+            display.print(".");
+        }
+        display.display();
+        dotCount = (dotCount + 1);
+    }
+
+    // Connection failed
+    display.clearDisplay();
+    display.setCursor(0, 0);
+    display.println("Connection failed.");
+    display.display();
+    WiFi.disconnect();
+    return false;
+}
+
+// Setup Access Point with DNS and HTTP server
+void netman::createAP() {
+    WiFi.softAPdisconnect(true);
+    WiFi.mode(WIFI_AP);
+    WiFi.softAP(_ssid.c_str(), _pass.c_str(), 1, _hidden);
+
+    display.clearDisplay();
+    display.setCursor(0, 0);
+    display.println("AccessPoint created");
+    display.setCursor(0, 14);
+    display.println("SSID:");
+    display.setCursor(0, 24);
+    display.setTextSize(1);
+    display.println(_ssid.c_str());
+    display.setTextSize(1);
+    display.setCursor(0, 40);
+    display.println("Config portal:");
+    display.setCursor(0, 50);
+    display.print("http://");
+    display.println(WiFi.softAPIP().toString());
+    display.display();
+
+    server.reset(new ESP8266WebServer(80));
+    DNSServer dnsServer;
+    dnsServer.start(53, "*", WiFi.softAPIP());
+
+    server->on("/", std::bind(&netman::handleRoot, this));
+    server->on("/add", std::bind(&netman::handleAdd, this));
+    server->on("/remove", std::bind(&netman::handleRemove, this));
+    server->on("/select", std::bind(&netman::handleSelect, this));
+
+    server->begin();
+
+    while (true) {
+        dnsServer.processNextRequest();
+        server->handleClient();
+        delay(10);
+    }
+}
+
+// Redirect to AP IP if not accessed directly
+bool netman::redirectToIp() {
+    if (server->hostHeader() == WiFi.softAPIP().toString()) {
+        return false;
+    }
+    server->sendHeader("Location", "http://" + WiFi.softAPIP().toString(), true);
+    server->send(302, "text/plain", "");
+    server->client().stop();
+    return true;
+}
+
+// Modify the addSsid function to take parameters from the `select` page
+void netman::addSsid(String ssid, String password) {
+    _ssids[ssid] = password;
+    writeConfig();
+
+    // Attempt to connect to the selected network
+    if (tryConnectToSsid(ssid.c_str(), password.c_str())) {
+        // Redirect to the main page on success
+        server->sendHeader("Location", "/", true);
+        server->send(302, "text/plain", "");
+    } else {
+        // Show error message if connection failed
+        server->send(200, "text/html", "<html><body><h2>Connection failed. Please try again.</h2></body></html>");
+    }
+}
+
+// Remove SSID from config
+void netman::removeSsid(String ssid, String password) {
+    if (_ssids.count(ssid) && _ssids[ssid] == password) {
+        _ssids.erase(ssid);
+        writeConfig();
+    }
+}
+
+// Handle file-based config loading
+void netman::readConfig() {
+    _ssids.clear();
+    File file = LittleFS.open(configFile, "r");
+    if (!file) {
+        display.clearDisplay();
+        display.setCursor(0, 0);
+        display.println("Config not found");
+        display.display();
+        return;
+    }
+
+    while (file.available()) {
+        String ssid = file.readStringUntil('\n');
+        ssid.trim();
+        String pass = file.readStringUntil('\n');
+        pass.trim();
+        _ssids[ssid] = pass;
+    }
+    file.close();
+}
+
+// Handle file-based config saving
+void netman::writeConfig() {
+    File file = LittleFS.open(configFile, "w");
+    for (const auto& item : _ssids) {
+        file.println(item.first);
+        file.println(item.second);
+    }
+    file.close();
+}
+
+// Reset configuration
+void netman::reset() {
+    LittleFS.remove(configFile);
+    _ssids.clear();
+}
+
+String urlEncode(const String &str) {
+    String encoded = "";
+    char c;
+    for (size_t i = 0; i < str.length(); i++) {
+        c = str.charAt(i);
+        if (isalnum(c)) {
+            encoded += c;
+        } else {
+            encoded += '%';
+            char buf[3];
+            snprintf(buf, sizeof(buf), "%02X", c);
+            encoded += buf;
+        }
+    }
+    return encoded;
+}
+
+void netman::handleRoot() {
+    if (redirectToIp()) return;
+
+    // Scan for available networks
+    int n = WiFi.scanNetworks();
+    String result = beginHtml;
+
+    // Add stored SSIDs to the page
+    result += "<h3>Saved Networks</h3>";
+    for (const auto& item : _ssids) {
+        result += "<tr><td><button onclick=\"location.href='/remove?ssid=' + escape('" + item.first + "') + '&pass=' + escape('" + item.second + "') \">&times;</button></td><td>" + item.first + "</td><td>-</td><td>" + item.second + "</td></tr>";
+    }
+
+    // Display available WiFi networks
+    result += "</tbody></table><h3>Available Networks</h3><table><tbody>";
+    for (int i = 0; i < n; i++) {
+        // Get SSID and signal strength
+        String ssid = WiFi.SSID(i);
+        int rssi = WiFi.RSSI(i);
+        bool openNetwork = (WiFi.encryptionType(i) == ENC_TYPE_NONE);
+
+        // Show network with button to select
+        result += "<tr><td><button onclick=\"location.href='/select?ssid=" + urlEncode(ssid) + "'\">" + ssid + "</button></td><td>" + (openNetwork ? "(Open)" : "(Secured)") + "</td><td>" + String(rssi) + " dBm</td></tr>";
+    }
+    result += endHtml;
+    server->send(200, "text/html", result);
+}
+
+void netman::handleAdd() {
+    server->send(200, "text/html", "The ESP will now reboot.");
+    addSsid(server->arg("ssid"), server->arg("pass"));
+    delay(500);
+    ESP.restart();
+}
+
+void netman::handleRemove() {
+    removeSsid(server->arg("ssid"), server->arg("pass"));
+    handleRoot();
+}
+
+// Add SSID to config and save
+void netman::handleSelect() {
+    String ssid = server->arg("ssid");
+    String selectPage = "<!DOCTYPE html><html lang='en'><head><meta charset='UTF-8'><meta name='viewport' content='width=device-width, initial-scale=1.0'><title>Connect to " + ssid + "</title><style>body{font-family:Arial,sans-serif;background-color:#f4f4f9;color:#333;display:flex;align-items:center;justify-content:center;height:100vh;margin:0}.container{width:100%;max-width:300px;padding:20px;background:#fff;border-radius:10px;box-shadow:0 4px 8px rgba(0,0,0,0.2);box-sizing:border-box}h2{margin-top:0;text-align:center;color:#0073e6}label{display:block;margin-bottom:5px;font-weight:bold}input[type='password']{width:100%;padding:8px;margin-bottom:15px;border:1px solid #ccc;border-radius:4px;box-sizing:border-box}button{width:100%;padding:10px;background-color:#0073e6;color:white;border:none;border-radius:4px;cursor:pointer;font-size:16px}button:hover{background-color:#005bb5}</style></head><body><div class='container'><h2>Connect to " + ssid + "</h2><form action='/add' method='get'><input type='hidden' name='ssid' value='" + ssid + "'><label for='pass'>Password:</label><input id='pass' type='password' name='pass' placeholder='Enter Password'><button type='submit'>Connect</button></form></div></body></html>";
+    server->send(200, "text/html", selectPage);
+}

test/README

@@ -0,0 +1,11 @@
+
+This directory is intended for PlatformIO Test Runner and project tests.
+
+Unit Testing is a software testing method by which individual units of
+source code, sets of one or more MCU program modules together with associated
+control data, usage procedures, and operating procedures, are tested to
+determine whether they are fit for use. Unit testing finds problems early
+in the development cycle.
+
+More information about PlatformIO Unit Testing:
+- https://docs.platformio.org/en/latest/advanced/unit-testing/index.html
